Amiga 500 PiStorm – Board only – Fully Assembled

Description

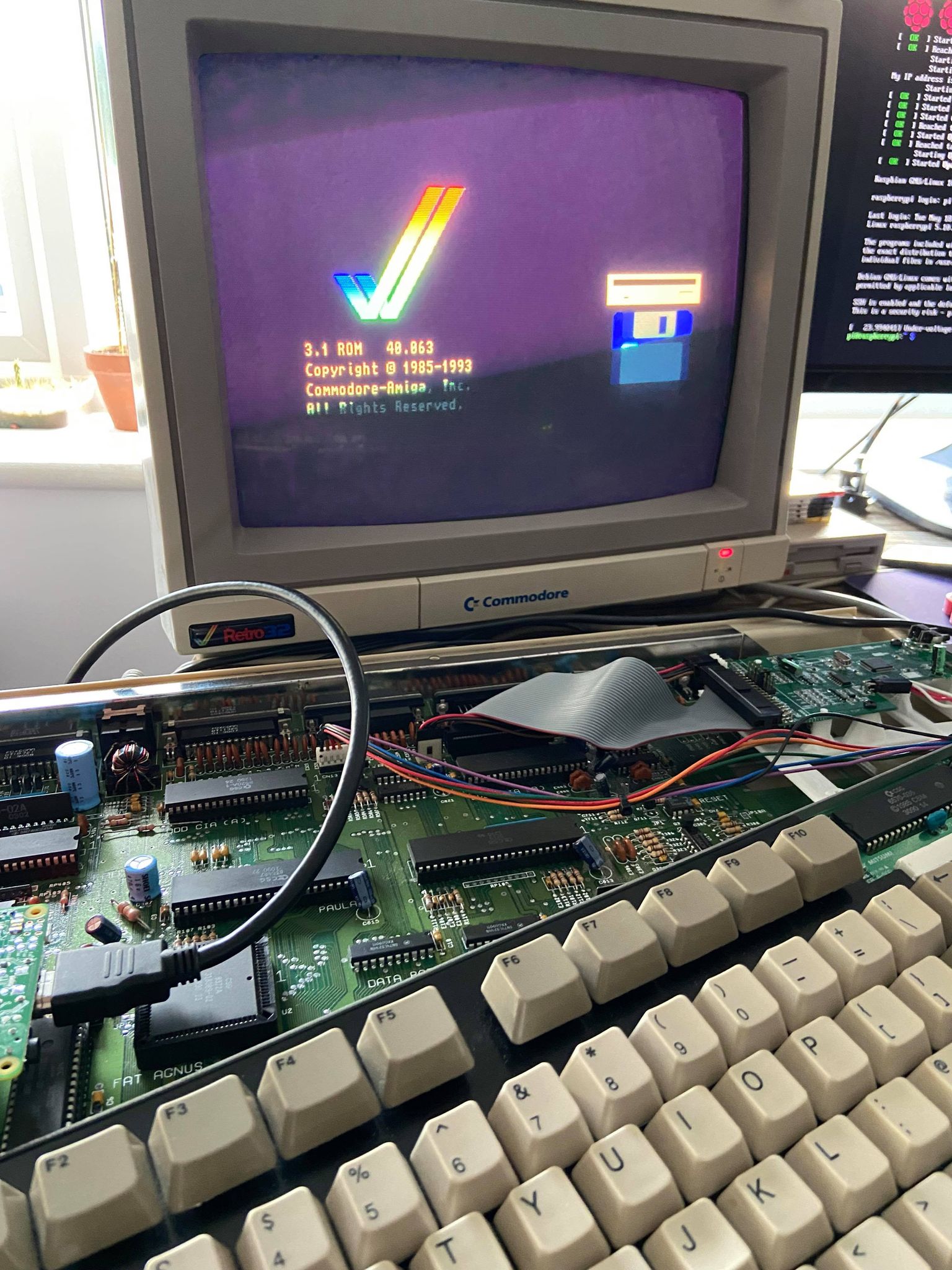

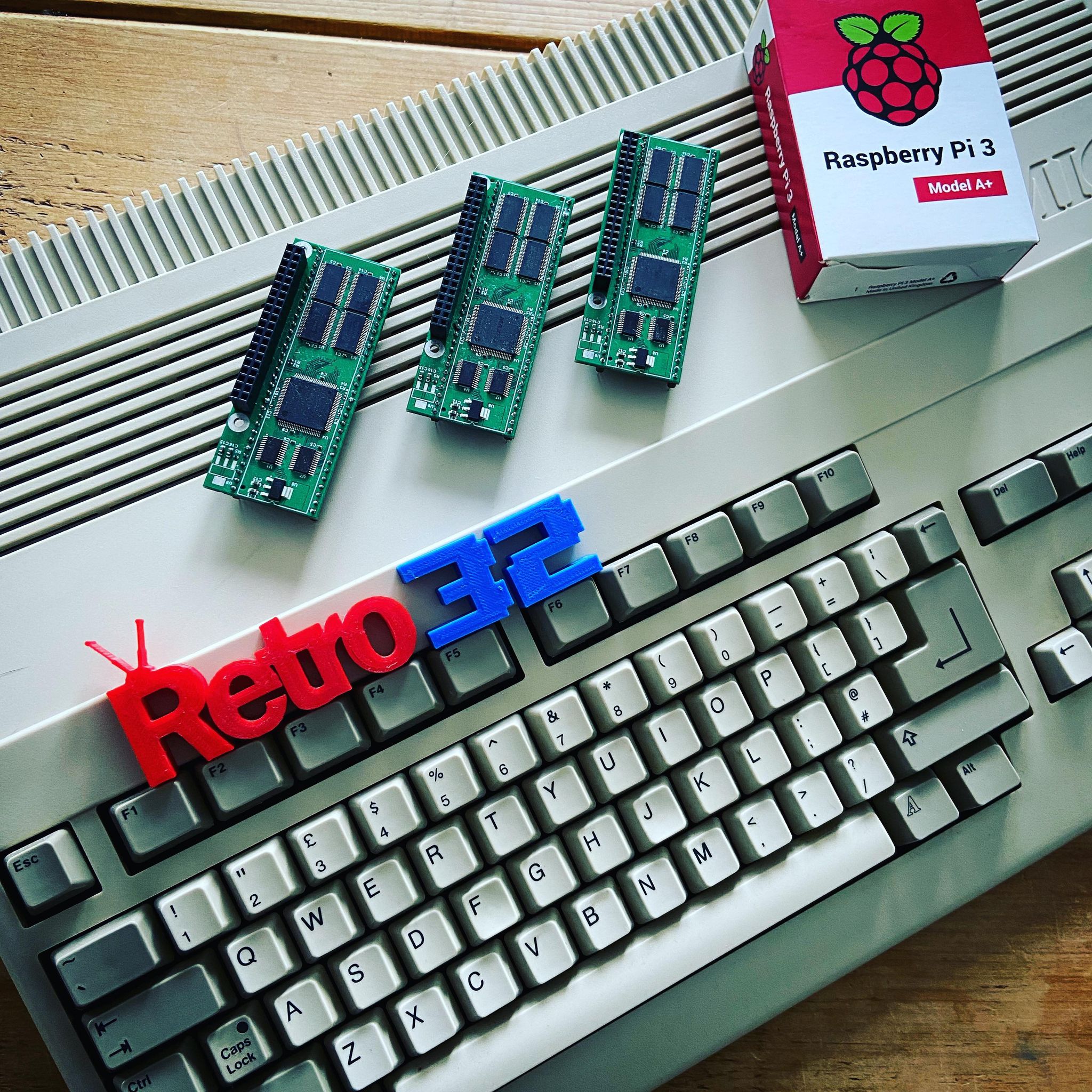

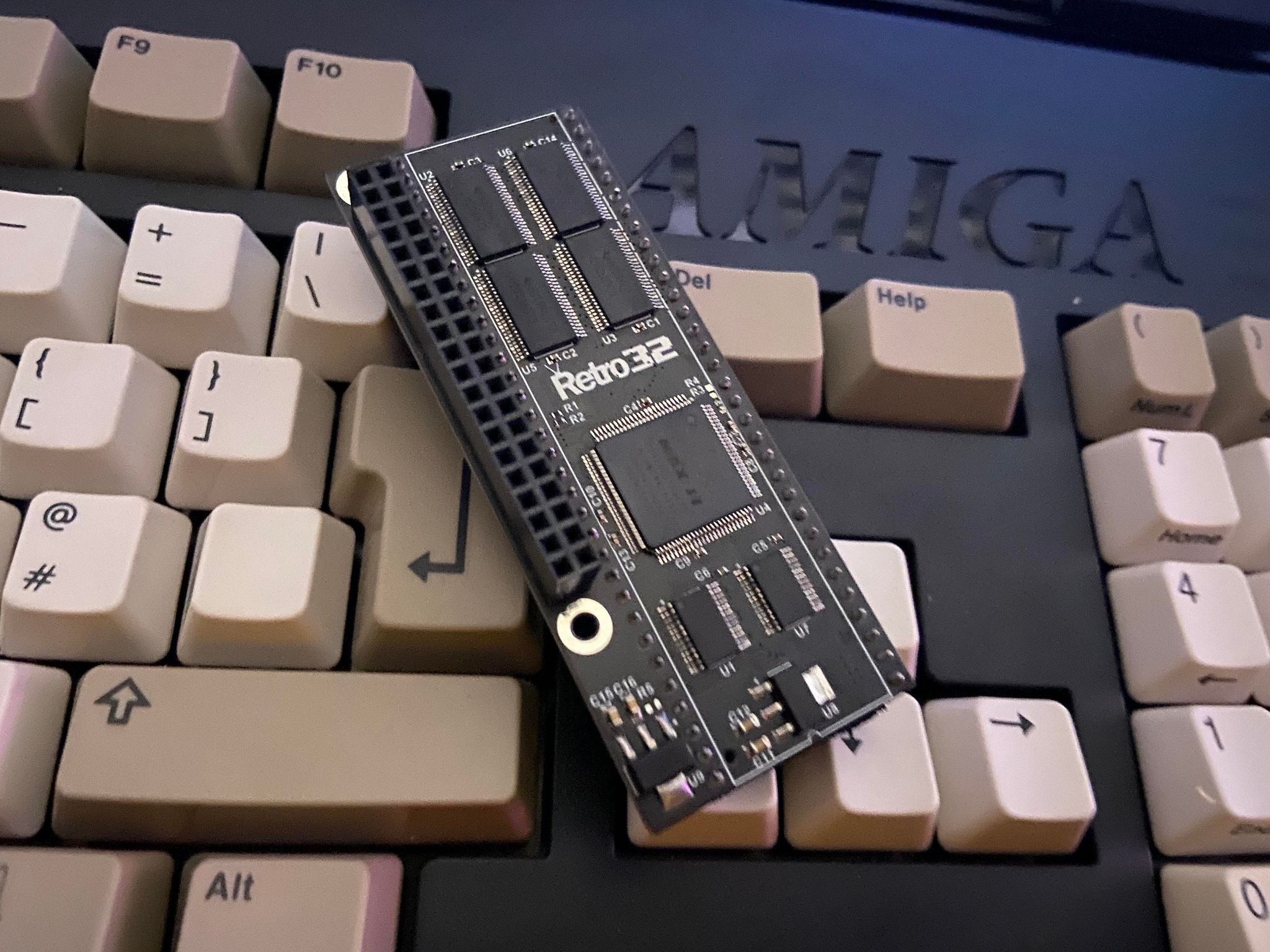

PiStorm is an adapter board intended to be paired with a Raspberry Pi Model 3A+. It goes in the DIP socket on and acts in place of the CPU, but functionality can be extended beyond simple CPU emulation.

Now shipping the limited edition Purple Retro32 PiStorm (while stocks last! Colour may vary)

Board Only:

• PiStorm – Board only – Fully Assembled
• Links to instructions on how to install and setup PiStorm
• A set of Amiga 500 silver case screws
• Note: The Pi 3A is NOT included, this is board ONLY.

Board Only & SD Card:

• PiStorm – Board only – Fully Assembled
• Links to instructions on how to install and setup PiStorm
• A set of Amiga 500 silver case screws

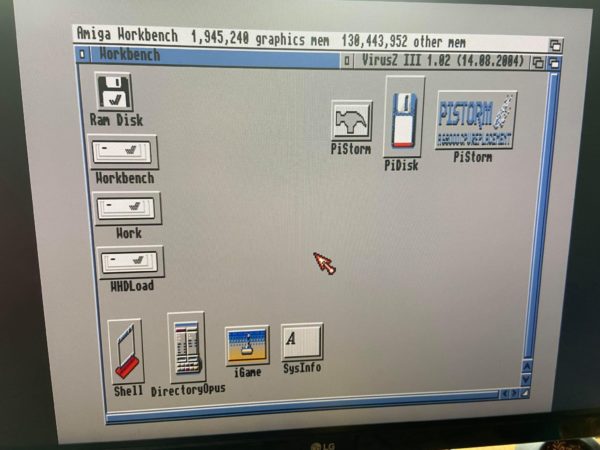

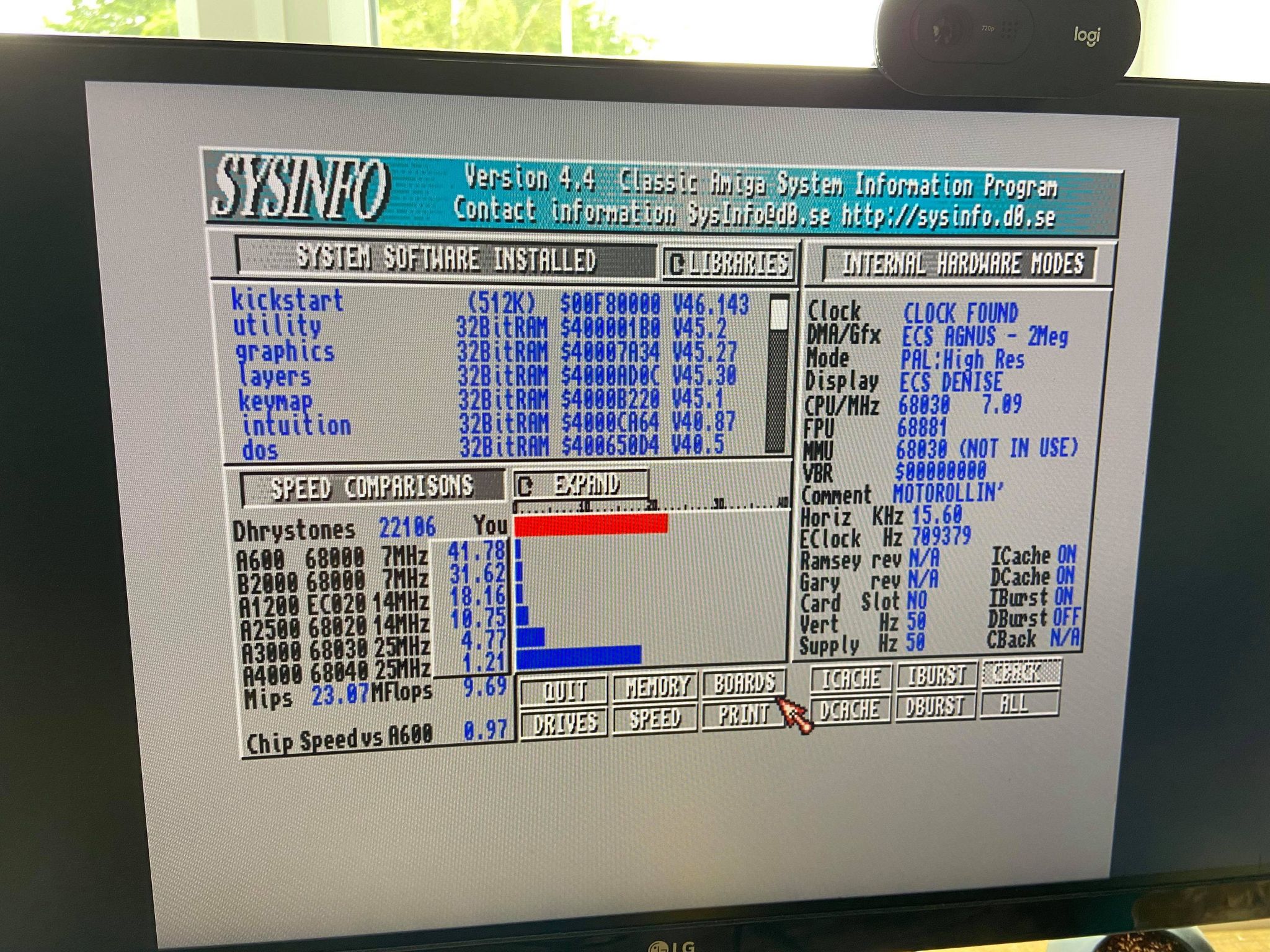

• Fully setup software – Boots straight to WB – includes WHDLoad pack + Samba Server setup on Pi so you can mount the HDF files in WinUAE to transfer files etc.. Supplied on SanDisk Ultra 32GB MicroSD Card (Class 10). This image is based on Zebs image and includes PiDisk, Sysinfo – iGame etc. If you’d like to see it running then please get in contact. We also have Workbench 3.2 RTG images if you already have the license. (Configured with an 030 / A314)
• Note: The Pi 3A is NOT included.

Fully Built Kit

• PiStorm – Board only – Fully Assembled
• New Pi 3A
• New Sandisk 32GB MicroSD card
• Fully setup software – This image is based on Zebs image and includes PiDisk, Sysinfo – iGame etc. If you’d like to see it running then please get in contact. We also have Workbench 3.2 RTG images if you already have the license. (Configured with an 030 / A314)
• A set of Amiga 500 silver case screws

SD Card Only

• Fully setup software – Boots straight to WB – includes WHDLoad pack + Samba Server setup on Pi so you can mount the HDF files in WinUAE to transfer files etc.. Supplied on SanDisk Ultra 32GB MicroSD Card (Class 10). This image is based on Zebs image and includes PiDisk, Sysinfo – iGame etc. If you’d like to see it running then please get in contact. We also have Workbench 3.2 RTG images if you already have the license. (Configured with an 030 / A314)

We appreciate that this is priced high. This is due to the CPLD chip shortage, our builder is having to compete with others for stock. We hope to bring the price down when availability improves. We do not accept returns of this item. Please scroll down for more information.

Note – we are not charging for the software – simply the time to configure it all. We will contact you to confirm you have the correct ROMs etc..

At present these are in limited stock – please contact us if you wish to be placed on our waiting list. Alternatively, you can try the PiStorm discord channel. These will be limited 1 per customer.

Fitting guide

For instructions on fitting the PiStorm please see our video below

Check out our full PiStorm installation and Software setup guide below

PiStorm installation and setup guide – Apps, PiDisk, Networking and RTG (A314)

Notice

All our items are fully tested before dispatch. Many of our items require delicate fitting into aging computer systems. We do not accept returns of our PiStorm, RGB to HDMI Boards, Mouse adapters, Memory modules or any other PCB-based product as incorrect fitting can lead to the item being damaged by the customer. Our listing for these items clearly shows “no returns” which is why we offer a video on each of the product paging showing detailed instructions on how to fit. Do not place an order unless you agree to this. If you are unsure then please ask before ordering.
